For use with Flowol software program and FlowIC PIC chip, all supplied by Kelvin
Bend the ‘off cut’ wire leads
and link holes as shown 1-2,
3-4, 5-6 B-C, D-F and
the bottom link X
The easiest way to
make this is to add
the small parts first as
shown on this page.
Be CAREFUL to
connect polarity parts
the correct way
round.
a) solder the resistors in place then

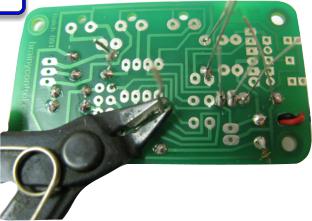

b) cut excess wire leads off
Note - keep the offcuts and use them
for the next step.
a) solder the socket in place then
b) add the capacitors with negative
side (short lead) as marked - on PCB.
Introduction
Turn over - solder and cut excess wire
Add wire links
Add two diodes
LED + chip holder
Socket and capacitors
100uF
10uF
% = tolerence ring
(can ignore this)
Add two 10k resistors
Add 470 & 1k
1k
470*
Add the two diodes with
white end as marked
(important to get this right)
* 470 ohms
(ignore other marking)
LED
- notch
10k
